كاميرا اجتماعات، كاميرا بث مباشر عبر الويب، كاميرا مؤتمرات فيديو، نظام مؤتمرات PTZ

كاميرا اجتماع كاميرا ويب بث مباشر كاميرا مؤتمر فيديو نظام مؤتمرات ptz

Resolution:Full HD 1080p

Lens optical zoom20x optical zoom

Lens focal length:f=5.5~110mm

FOV-H:3.3° (narrow angle) - 54.7° (wide angle)

Aperture:F1.6 - F3.5

Video Signal:1080P 60/50/30/25/59.94/29.97fps

1080i 60/50/59.94fps

Video formats:H.265, H.264

Signal-to-noise ratio:2D and 3D digital noise reduction >55dB

Video output:USB2.0/USB3.0/HD-MI/LAN

Network Protocols:RTSP, RTMP, ONVIF, GB/T28181

Control Interface:RS232

Control protocols:VISCA/Pelco-D/Pelco-P

Horizontal rotation:-170°～+170°

Tilt rotation:-30°～+90°

Preset bits:User can set up to 255 preset positions (10 presets for remote control)

Random Accessories:12V/1.5A power supply, RS232 control cable, USB3.0 connection cable, USB2.0 connection cable, remote control, manual, warranty card

Feature:

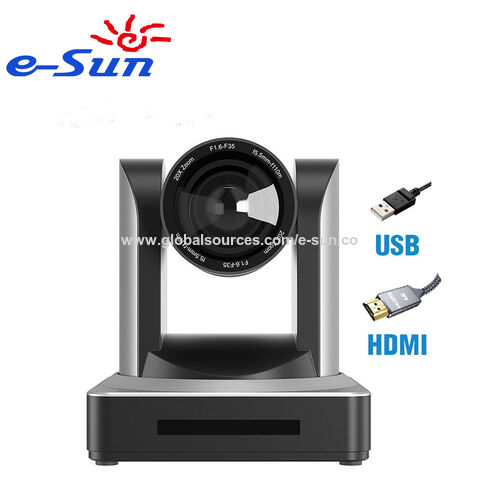

20X PTZ conference camera USB2.0 3G-SDI HDMI LAN Video Output

* Backlight and dark light compensation

* 1080p@60fps smooth videos

* 20x lossless optical zoom lens supports framing adjustment

* Support H.265/H.264 encoding, making the picture smoother and clearer under low bandwidth.

* Various nertwork protocols: support ONVIF, GB/T28181, RTSP, RTMP protocols; support RTMP push mode, easy to link streaming media servers, etc.

* Pan ±170°, tilt -30°~+90°; achieve fast, quiet and precise pan-tilt movement

* Multiple presets setting, 10 via infrared remote control, 255 via RS232

* Support concatenation, multiple conference cameras in series via RS232 in/out.

* USB2.0/3G-SDI/HDMI/LAN video output

* Various Installtaion method, Desktop,tripod,wall mount, ceiling mount(inversion installation)

* Compatible with Various major system and video conferencing platforms

* The power adapter :National Standard, American Standard, British Standard, European Standard as options
