أكثر مثاقب الحفر الهيدروليكية الأساسية خفيفة الوزن شيوعًا في الصين

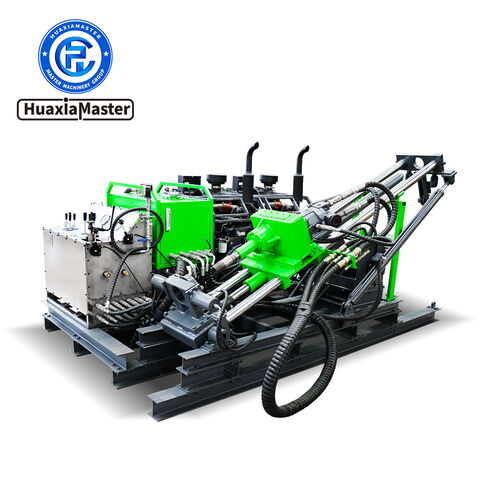

جهاز الحفر الأساسي الهيدروليكي بالكامل المحمول من سلسلة QY

1 ، مقدمة لسلسلة QY جهاز الحفر الأساسي الهيدروليكي المحمول بالكامل

Fully hydraulic core exploration drilling rig adopts rope core drilling rig with full hydraulic power head drilling method, and the core drilled by the drilling tool is lifted out by the winch through the inner hole of the drill pipe to complete the geological drilling core work. It is mainly suitable for drilling solid ore deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and engineering drilling such as tunnel ventilation, drainage and dike grouting.

2 ، ميزات سلسلة QY المحمولة الهيدروليكية بالكامل جهاز الحفر الأساسية

2.1 Modular design, light weight, easy to disassemble and carry.

2.2 The rig is fully hydraulic driven, and the hydraulic system adopts load sensitive control, with high working efficiency and high torque.

   2.3 The power head rotation is driven by axial piston pump and inclined shaft piston motor, and the mechanical two gears plus step less speed regulation, advanced structure.

2.4 Equipped with a lateral translation mechanism for the power head, the mast is raised and lowered by a cylinder and can slide as a whole, and can drill holes within the range of 45-90°.

2.5 Hydraulic gripper to achieve clamping drill pipe, with drill pipe disassembly.

2.6 Hydraulic motor driven hoist, can be flexible lifting drilling tools or auxiliary tools.

3 ، معلمات سلسلة QY المحمولة الهيدروليكية بالكامل جهاز الحفر الأساسية

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
